ALTA
High-performance packaging for large-scale production
ALTA provides high-performance packaging solutions for large-scale production environments, delivering speed and efficiency.
Product Details
ALTA, the most advanced bundler in STAX portfolio, is designed to accommodate a huge number of bundle configurations of various roll and folded products. It comes with standard elevator module where products are stacked and layered in the required configuration. It is also equipped with build-in upender module, which ensure reliable and impeccable bundling of single kitchen towels and other unstable products. Switching between standard mode and work with upender module is done with a simple and effortless adjustment. On top of all mentioned, ALTA air extraction system will secure superior bundle quality at speed of more than 25 bundles/min.
Maximum speed: 25 bundles/min
Options
- Dual-arm infeed
- Roll upender module
- Packs banding
- Data printer
- Photo-eye for mark registration
- Pre-strip insert
- Automatic changeover
- Additional conveyors and handling devices
- Shrink tunnel
- Label applicator

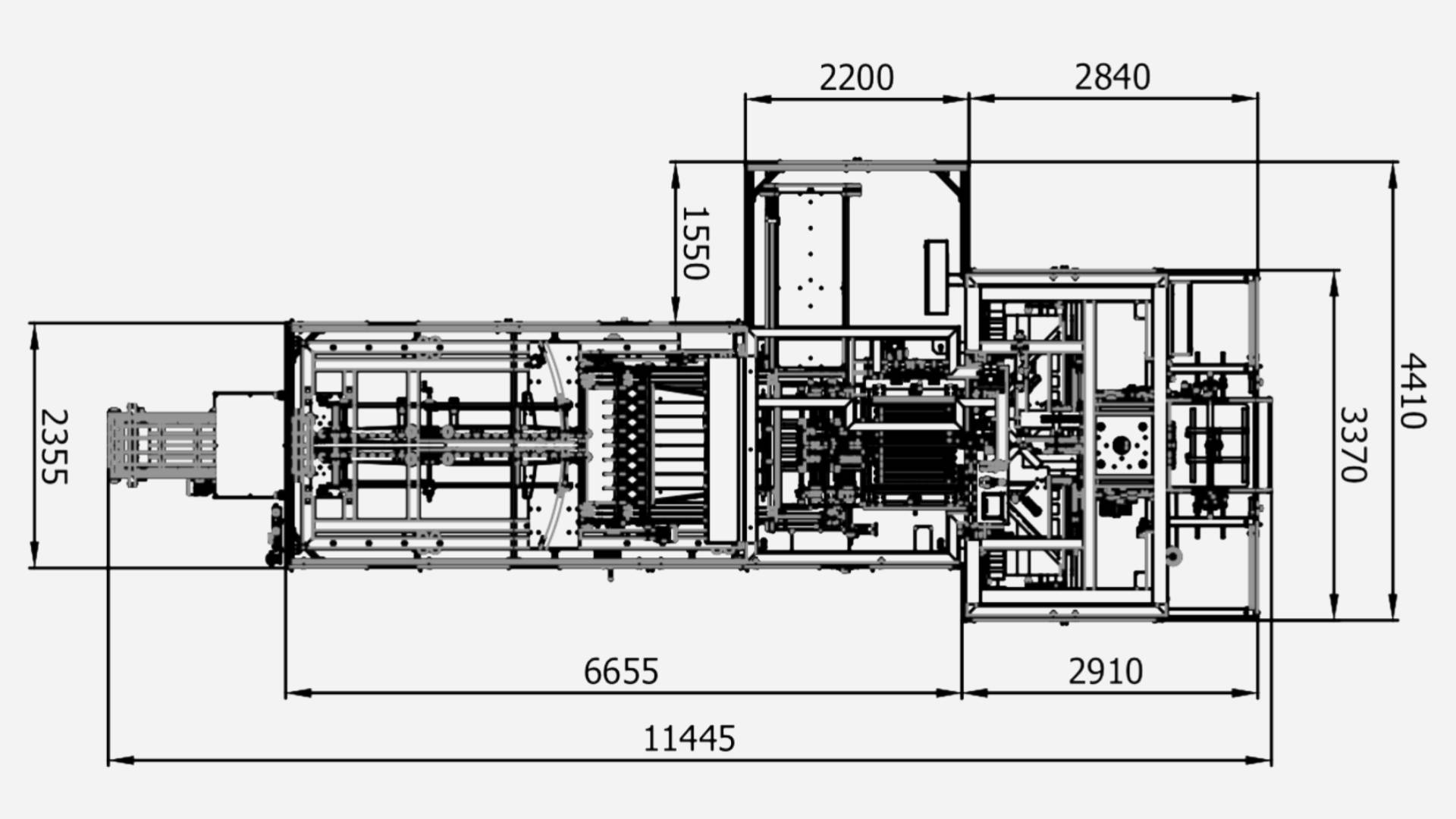

Layout
Resources
Technical Specifications
| Maximum Mechanical Speed | 27 bundles/min |
| Maximum Production Speed | 25 bundles/min |
| Average Format Changeover Time | 10 minutes |
| Bundle Length | 360 mm - 800 mm |
| Bundle Width | 360 mm - 800 mm |
| Bundle Height | 180 mm - 400 mm |
| Wrapping Material | PE, LDPE, Polyolefin (35 µ -60 µ) |
